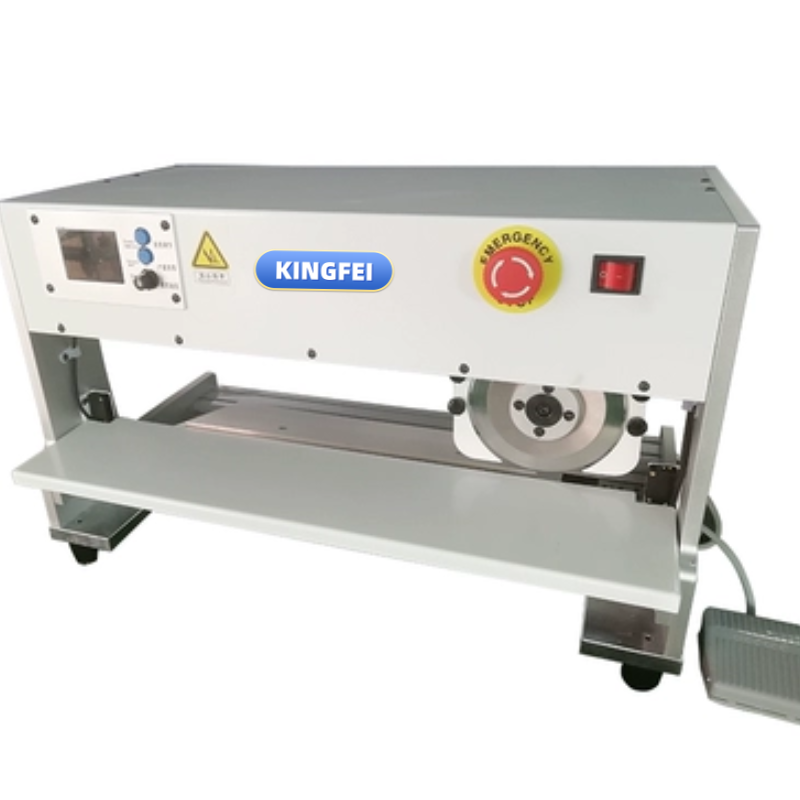

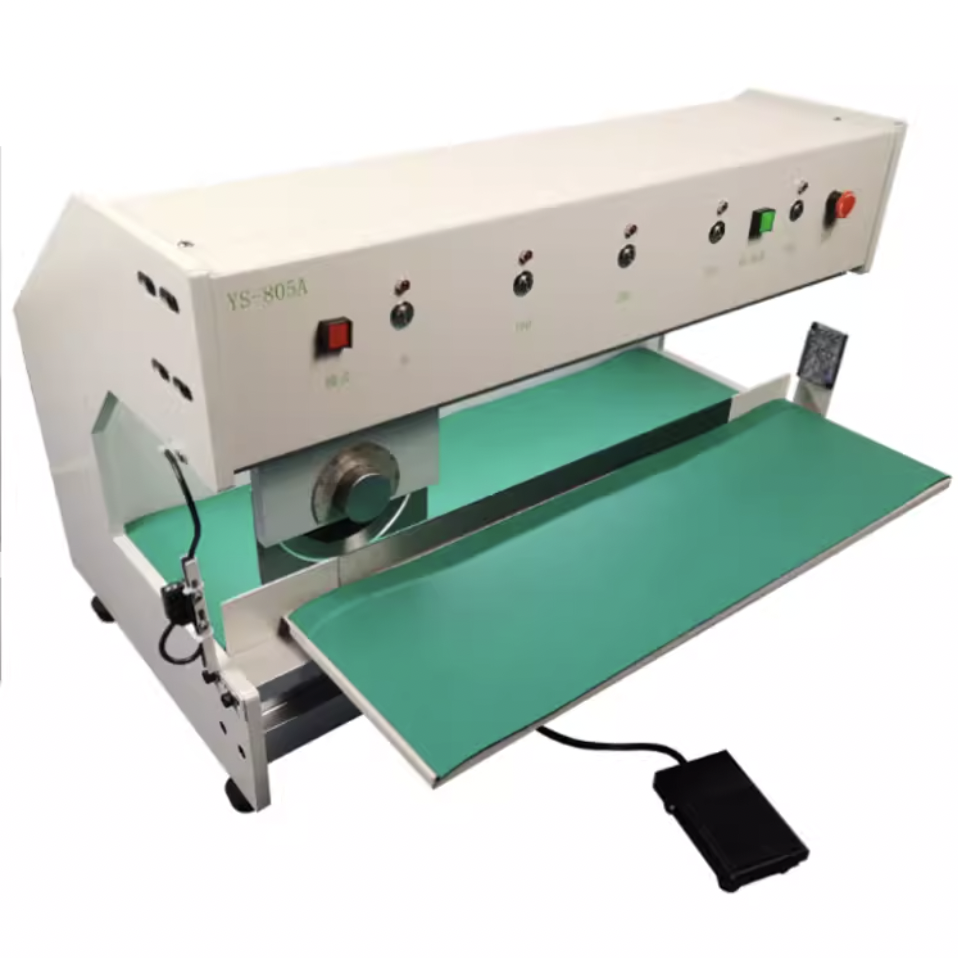

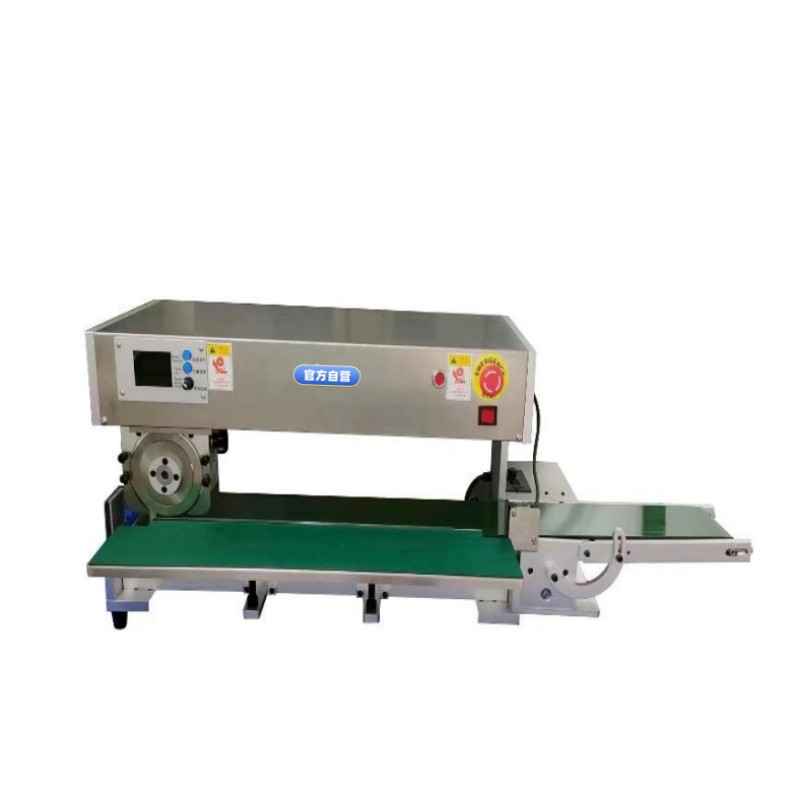

Walking knife type depaneling machine is a use of the upper circular knife and the lower straight blade electric PCB board, aluminum substrate depaneling machine, depaneling PCB through the V groove fixed in the lower knife, through the foot switch to control the upper knife operation implementation of depaneling.

Can cut 400mm, 600mm, 900mm, 1200mm Long, if over this range, also can customize for you.

The machine is driven by a step motor and is capable of separating a variety of large or small PCBs with pre-engraved grooves and aluminum substrates.

List: Main body, Manual, Power Wire, Pedal Switch and hexagonal wrence for tuning.

Feature:

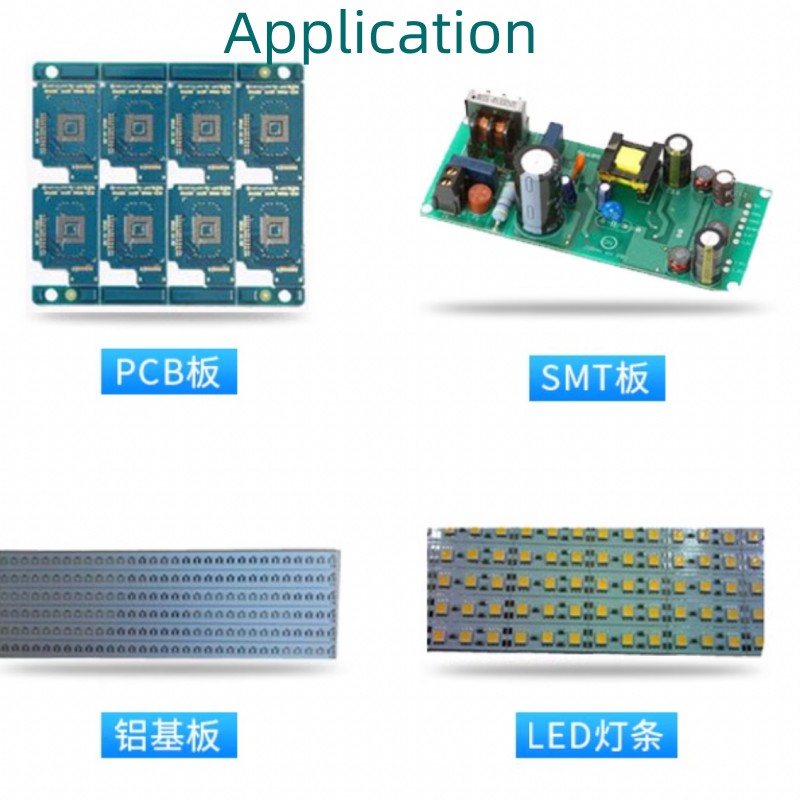

1, Can cut PCB Board, Copper Substrate, Glass Fiber Plate, Aluminum Substrate

2, Flat incisions without burrs

Parameter:

Maximum splitting board Length: Unlimited

PCB board thickness: 0.8~3mm

Speed: 300~500mm/second can choose

Blade Material: SK61D High Speed Steel

Power Supply: 230V/110V, 50HZ/60HZ, 150W

Size: 610*370*380mm

Weight: 30KG
